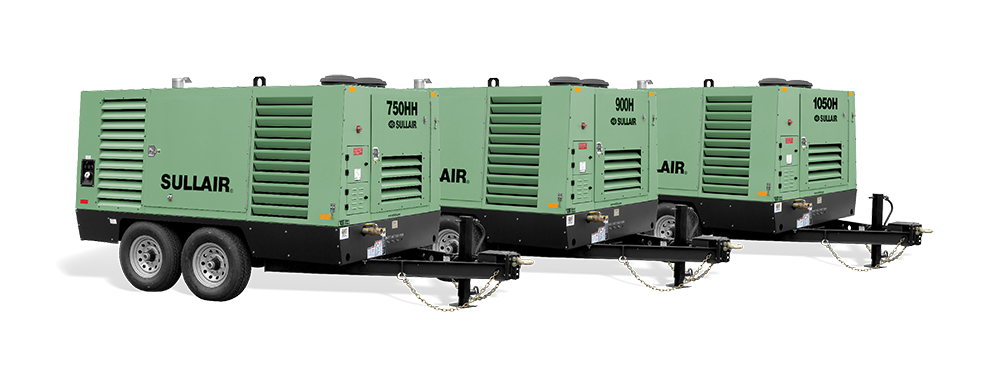

900 Series Tier 3 Portable Air Compressors

DESIGNED FOR TOTAL ACCESS AND RELIABILITY

The Sullair 900 Series is ready to hit the ground running for a variety of job applications.

• Legendary Sullair Air End
• Galvanneal sheet metal with durable powder coat finish
• COMPASS controller to easily view important compressor operation data

This unit is not available for final sale and use in Tier 4 Final emissions regions, including the US and Canada. Please contact your local distributor for unit availability in your region.

• Pneumatic inlet valve
• 0 to 100% capacity control
  • Automatic inlet valve
  • Unloaded starting
• COMPASS Controller with gauges and a LCD graphic display indicating important compressor operation data
• Indicator lights
• Protective shutdown switches
• Galvanneal sheet metal with durable powder coat finish
• Two-stage air filters with safety element
• Lockable service doors
• Swing-down cooler
• Sullair AWF® Compressor Fluid
• Complete fluid containment
• Tail lights n Air End Warranty
• 5-year or 10,000-hour warranty*

* When continuously serviced at recommended intervals with AWF and Genuine OEM filters

• Block heater
• Special color paint
• Surge hydraulic brakes
• Aftercooler
• Filtration for instrument quality air **

** Filtration is one requirement for instrument quality air. To fully meet ANSI/ISA-7.0.01 Quality Standard for Instrument Air additional air treatment is required.

PERFORMANCE

750

Actual Delivery cfm (m³/min): 750 (21.2)
Rated Pressure psi (bar): 100 (7)
Pressure Range min/max psi (bar): 80/125 (5.5/8.2)
Sound Level dB(A)*: 76

750H

Actual Delivery cfm (m³/min): 750 (21.2)
Rated Pressure psi (bar): 150 (10.3)
Pressure Range min/max psi (bar): 80/150 (5.5/10.3)
Sound Level dB(A)*: 76

750HH

Actual Delivery cfm (m³/min): 750 (21.2)
Rated Pressure psi (bar): 175 (12.1)
Pressure Range min/max psi (bar): 80/175 (5.5/12.1)
Sound Level dB(A)*: 76

825

Actual Delivery cfm (m³/min): 825 (23.4)
Rated Pressure psi (bar): 100 (7)
Pressure Range min/max psi (bar): 80/125 (5.5/8.2)
Sound Level dB(A)*: 76

900

Actual Delivery cfm (m³/min): 900 (25.5)
Rated Pressure psi (bar): 100 (7)
Pressure Range min/max psi (bar): 80/125 (5.5/8.2)
Sound Level dB(A)*: 76

900H

Actual Delivery cfm (m³/min): 900 (25.5)
Rated Pressure psi (bar): 150 (10.3)
Pressure Range min/max psi (bar): 80/150 (5.5/10.3)
Sound Level dB(A)*: 76

1050

Actual Delivery cfm (m³/min): 1050 (29.7)
Rated Pressure psi (bar): 125 (8.2)
Pressure Range min/max psi (bar): 80/125 (5.5/8.2)
Sound Level dB(A)*: 76

ENGINE

Make & Model (Emissions Level): Caterpillar C9 (T3)
Cylinders: 6
Bore & Stroke in (mm): 4.41 x 5.87 (112 x 149)
Rated Power hp (kW): 300 (224)
Rated Speed rpm: 1800
Displacement in³ (l): 538 (8.8)

DTQ PACKAGE - TANDEM AXLE: Electric Brakes, Mechanical Parking Brake, E-Z Lube Axle

Working Weight lbs (kg): 10,050 (4559)
Dry Weight lbs (kg): 9210 (4178)
Length in (mm): 189 (4801)
Width in (mm): 87 (2210)
Height in (mm): 88 (2235)
Track Width in (mm): 77 (1956)
Tire Size (load range): ST 235/80 R16

DWQ PACKAGE: 4-Wheel, Mechanical Parking

Working Weight lbs (kg): 10,200 (4627)
Dry Weight lbs (kg): 9360 (4246)
Length in (mm): 203 (5156)
Width in (mm): 90 (2286)
Height in (mm): 94 (2388)
Track Width in (mm): 80.8 (2052)
Tire Size (load range): ST 235/80 R16

DLQ PACKAGE: Less Running Gear

Working Weight lbs (kg): 9075 (4116)
Dry Weight lbs (kg): 8235 (3735)
Length in (mm): 131 (3327)
Width in (mm): 87 (2210)
Height in (mm): 77 (1956)
