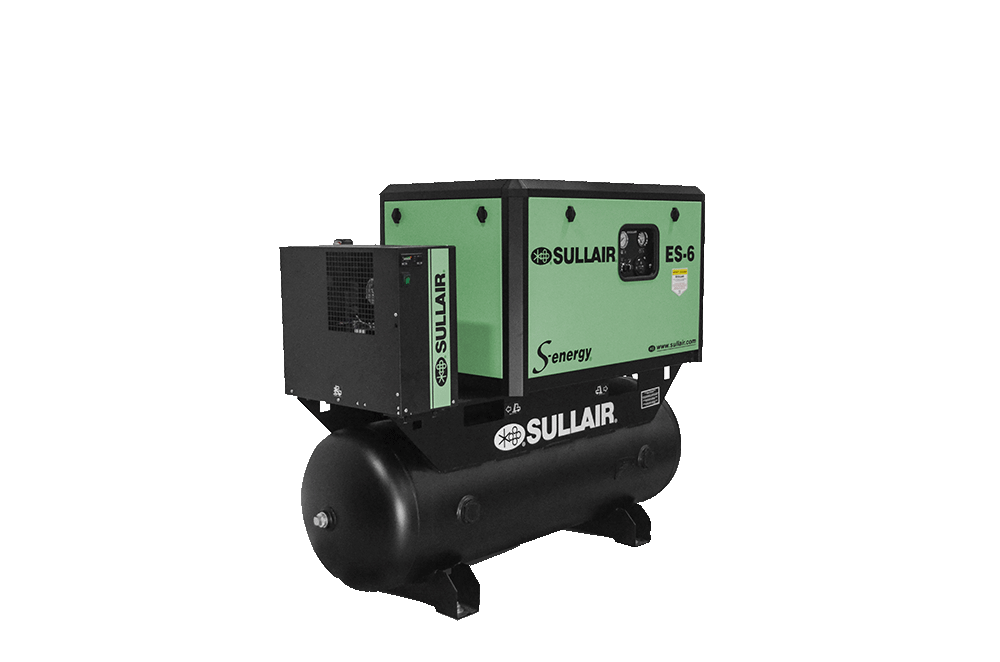

ES-6 S-energy® Encapsulated Rotary Screw Air Compressors
SUPERIOR FEATURES & BENEFITS
Sullair ES-6 S-energy® encapsulated compressors utilize design simplicity to provide exceptional reliability and extremely low maintenance.
- Reliable Sullair Air End
- Simple, compact design–40% fewer parts than conventional models
- Lower maintenance costs
Superior Package Design
- 40% fewer parts improve reliability
- Small footprint
- Designed for continuous duty
Reliable Sullair Air End
- Patented E-profile rotor design
- Longer bearing life
Helical Design Drive Gears
- Reduces thrust load
- Increases bearing life
Bearing Fluid Reservoirs
- Ensures fluid is available at start-up
- Extends air end life
Flange-Mounted Motor and Air End
- Provides positive alignment
- Optimizes bearing life of air end and motor
- Motor enclosure is Totally Enclosed Air Over (TEAO)
- Available voltages include 200V, 230V, 460V and 575V
Factory filled with biodegradable Genuine Sullube® 10,000 hour fluid
- Protects and cleans (no varnish)
- Controls operating temperatures
- Optimal viscosity
- Environmentally friendly
- Reduces fluid loss
- High flash point (263˚C)
10- Year Diamond Warranty*
*Maintaining the Sullair 10-Year Diamond Warranty requires using Genuine Sullair parts, Sullube®, and participation in the oil sampling program. Restrictions apply.
Optional Sound Enclosure
- Reduces sound levels to 68 dBA
- Lift out doors
PristineFG™
- Meets USDA and FDA H1 requirements
- Lasts up to 6000 hours
- Reduces lubricant consumption
- Performs in wide temperature range
- Extends compressor life
Performance Air System
- Receiver tank
- Matched compressed air dryer
- High efficiency filter
Available models
- 5H-5 hp (3.7 kW), 17 acfm (.48 m³/min), 125 (9 bar)
- 5XH-5 hp (3.7 kW), 13 acfm (.36 m³/min), 175 (12 bar)
- 7.5H-7.5 hp (5.5 kW), 28 acfm (.79 m³/min), 125 (9 bar)
- 7.5XH-7.5 hp (5.5 kW), 20 acfm (.56 m³/min), 175 (12 bar)
- 10H-10 hp (7.4 kW), 36 acfm (1.01 m³/min), 125 (9 bar)
- 10XH-10 hp (7.4 kW), 30 acfm (.84 m³/min), 175 (12 bar)
